Recognising different types of ECG changes is important during resuscitation. This chapter illustrates not only normal sinus rhythm but also include the different types of arrhythmias that may be seen in patients requiring resuscitation.

ALS Core ECG Rhythms & Recognition

1. Normal sinus rhythm

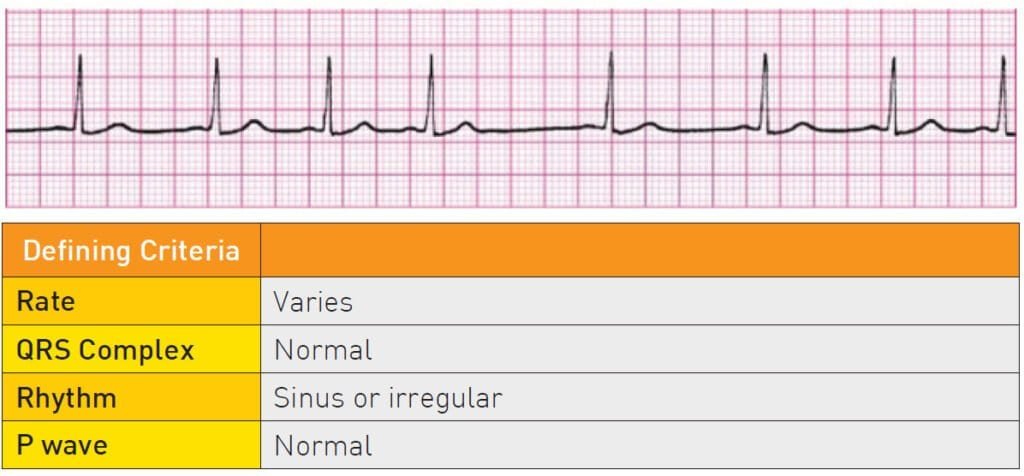

2. Sinus Arryhtmias

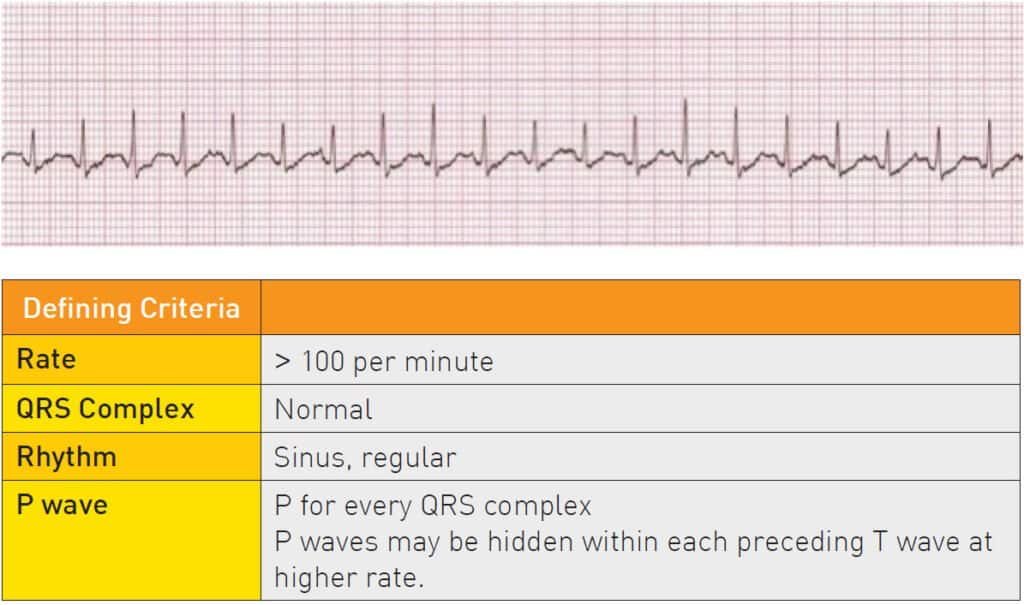

3. Sinus Tachycardia

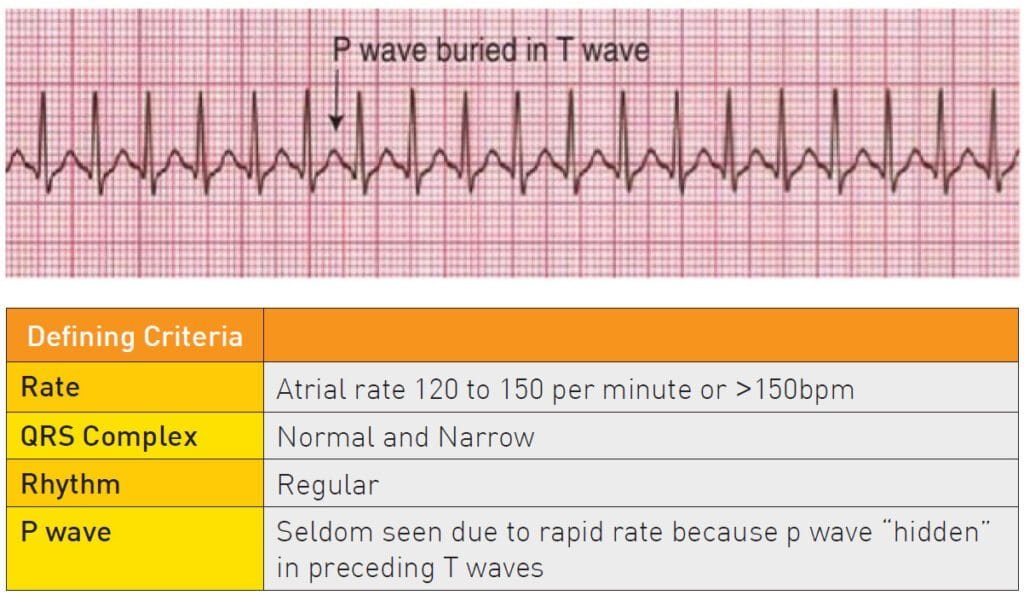

4. Supraventricular Tachycardia (SVT)

5. Sinus Bradycardia

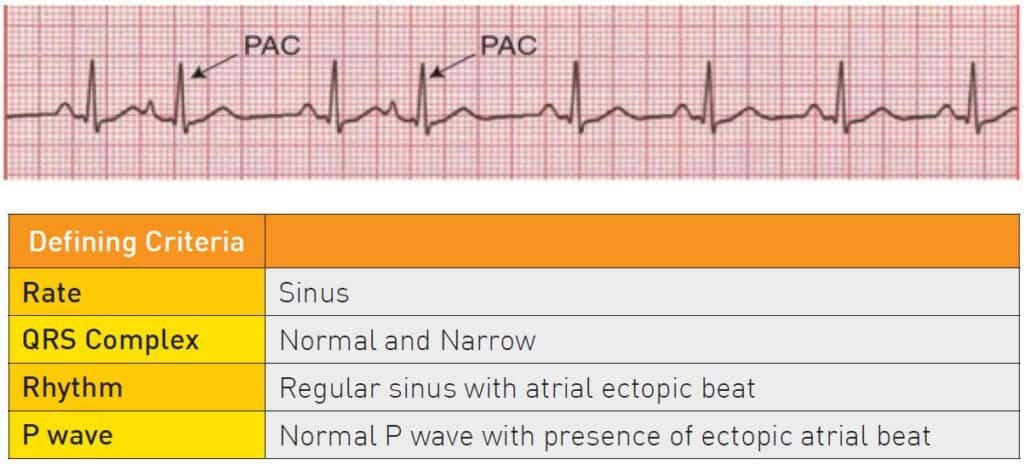

6. Premature Atrial Complexes

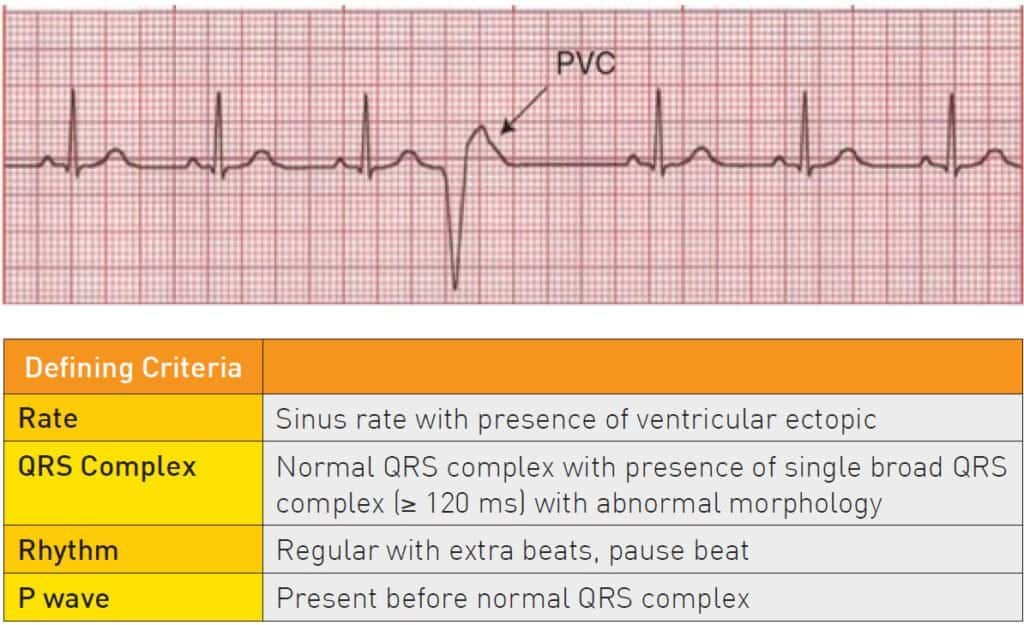

7. Premature Ventricular Complexes (PVCs)

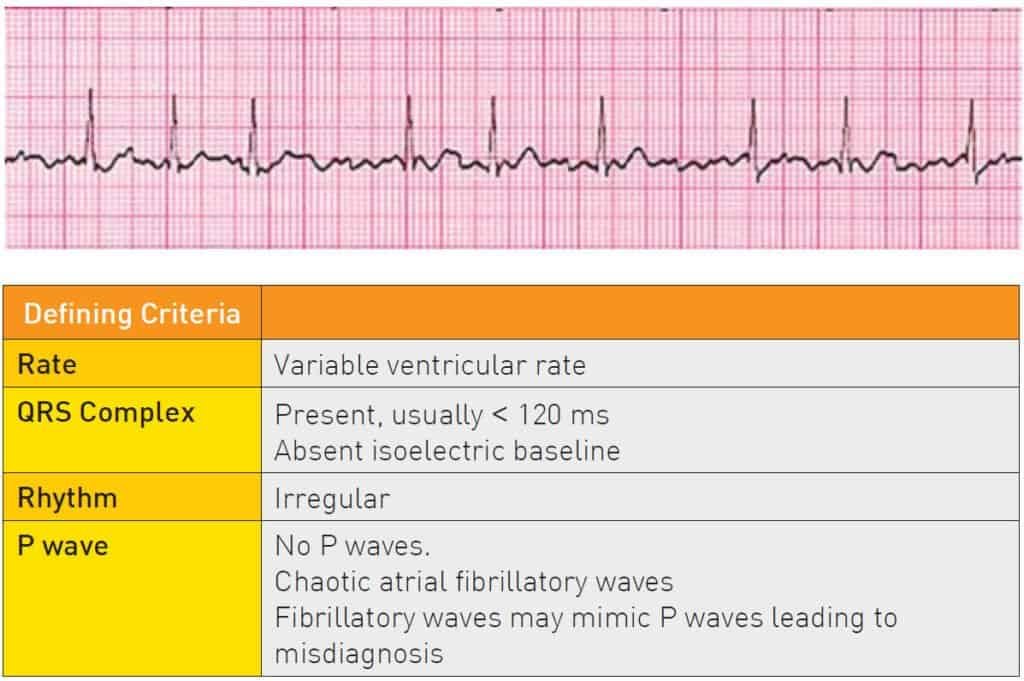

8. Atrial Fibrillation

9. Atrial Flutter

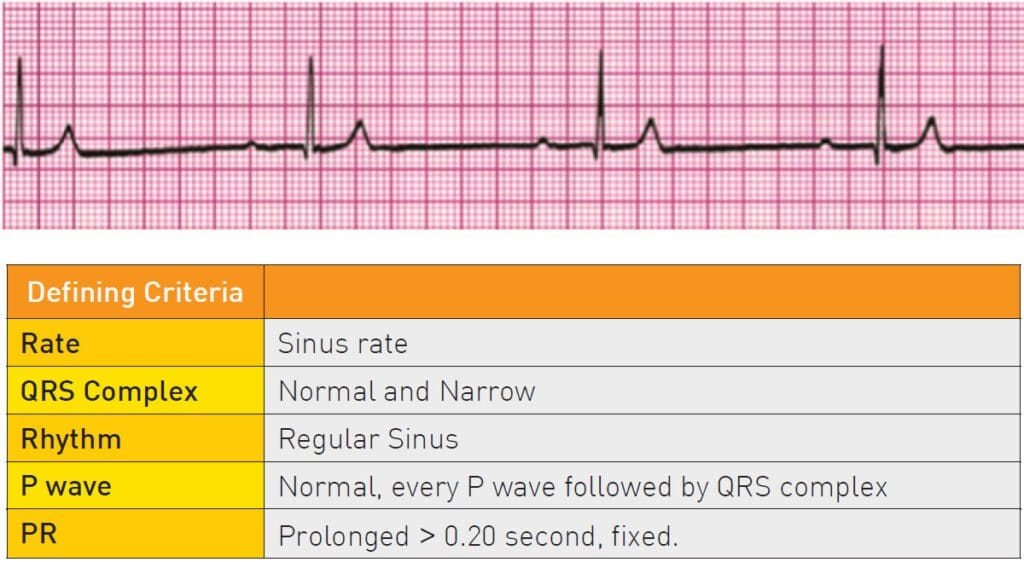

10. 1st degree heart block

11. 2nd Degree AV Block Mobitz Type I (Wenkebach)

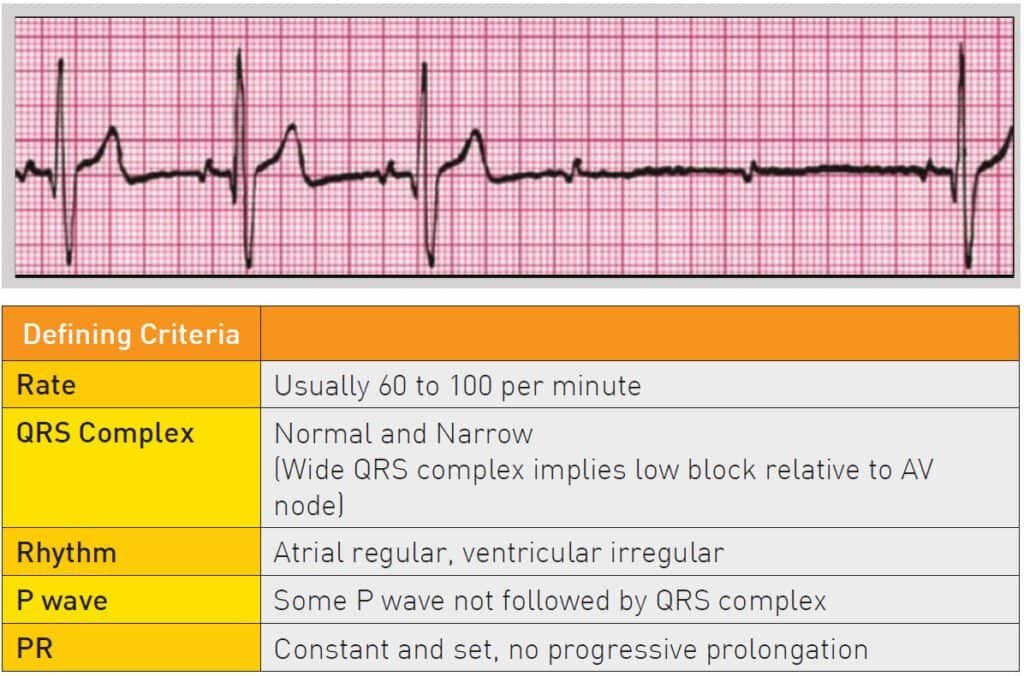

12. 2nd Degree AV Block Mobitz Type II

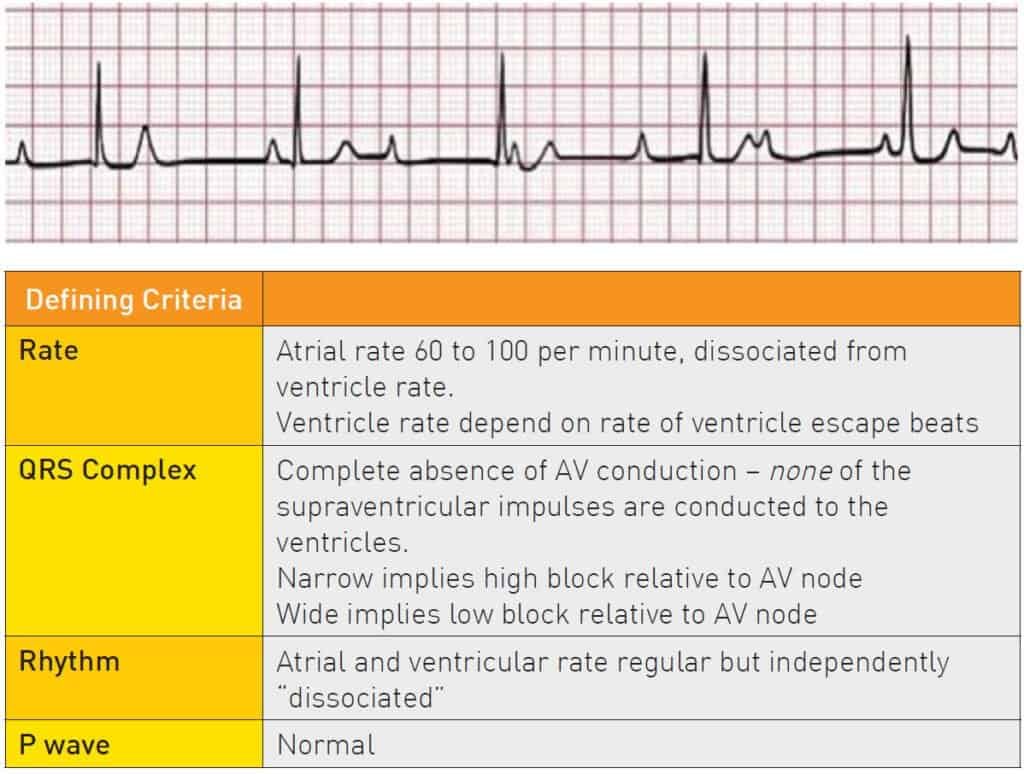

13. 3rd Degree Heart Block

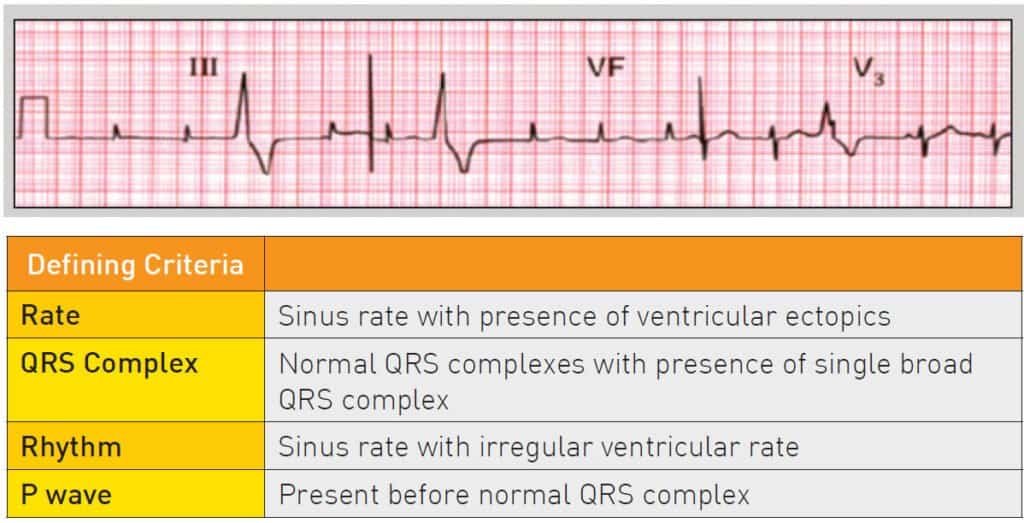

14. Multifocal Ventricular ectopics

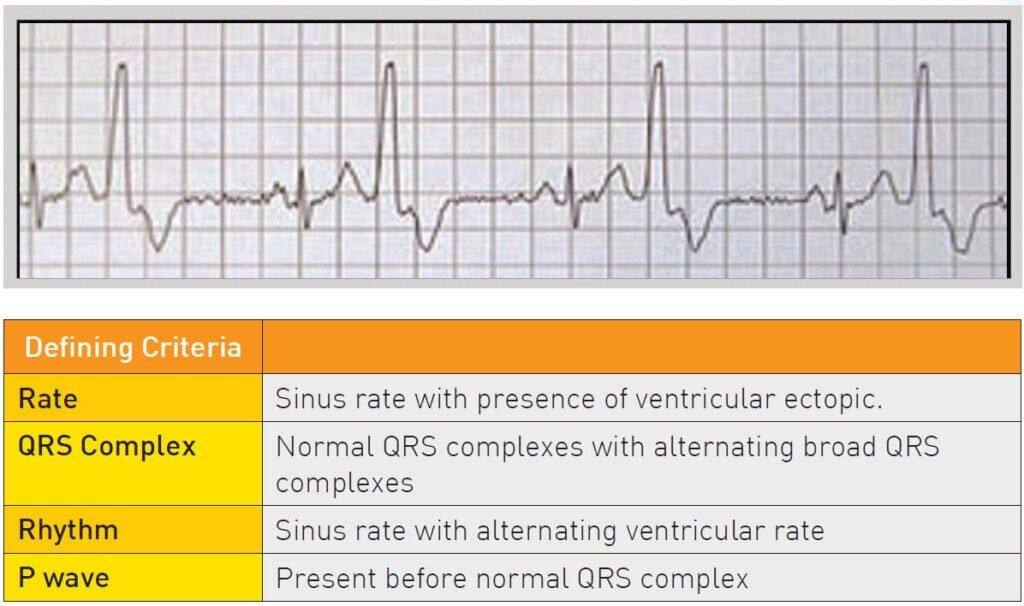

15. Ventricular Bigeminy

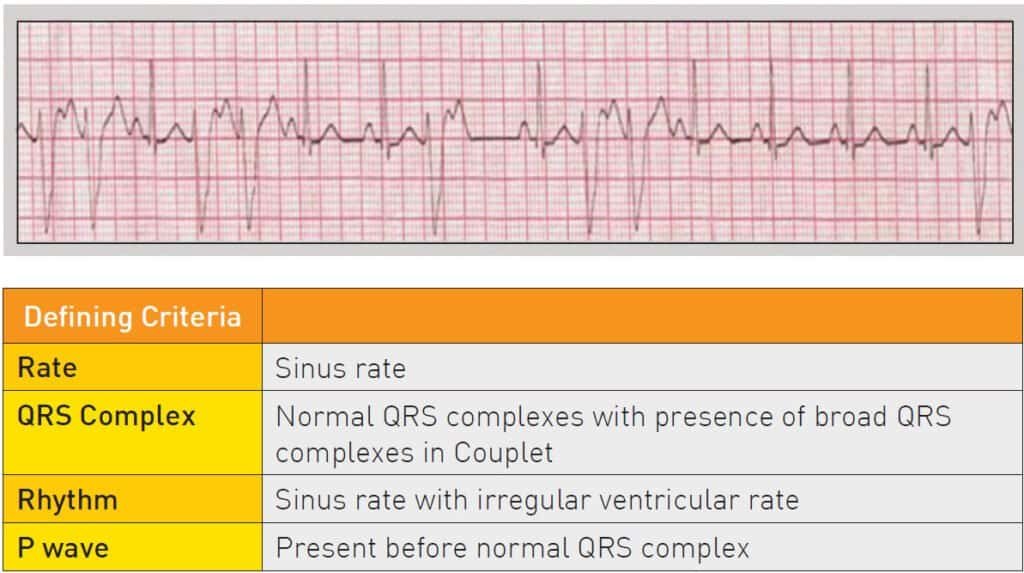

16. Couplets

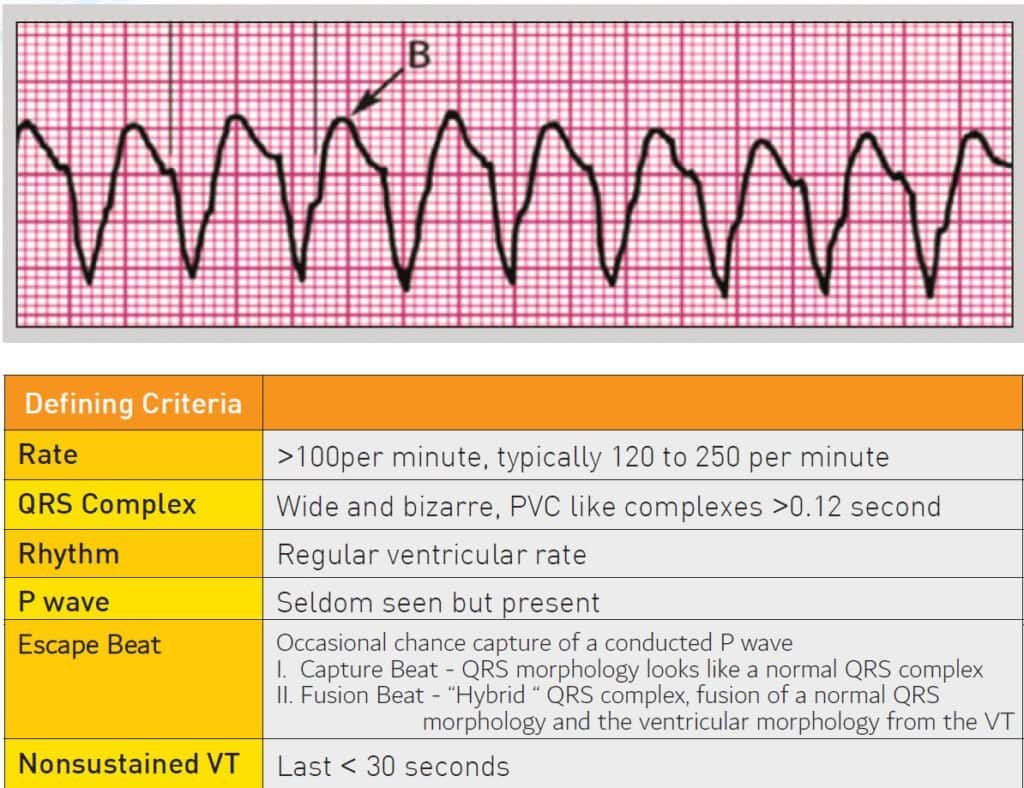

17. Monomorphic VT

18. Polymorphic VT

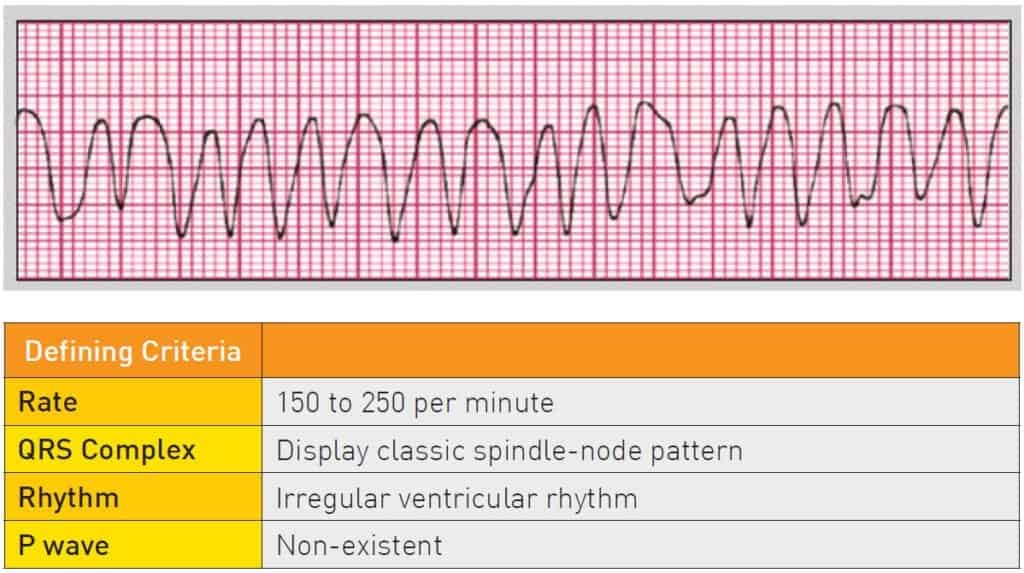

19. Torsades De Pointes

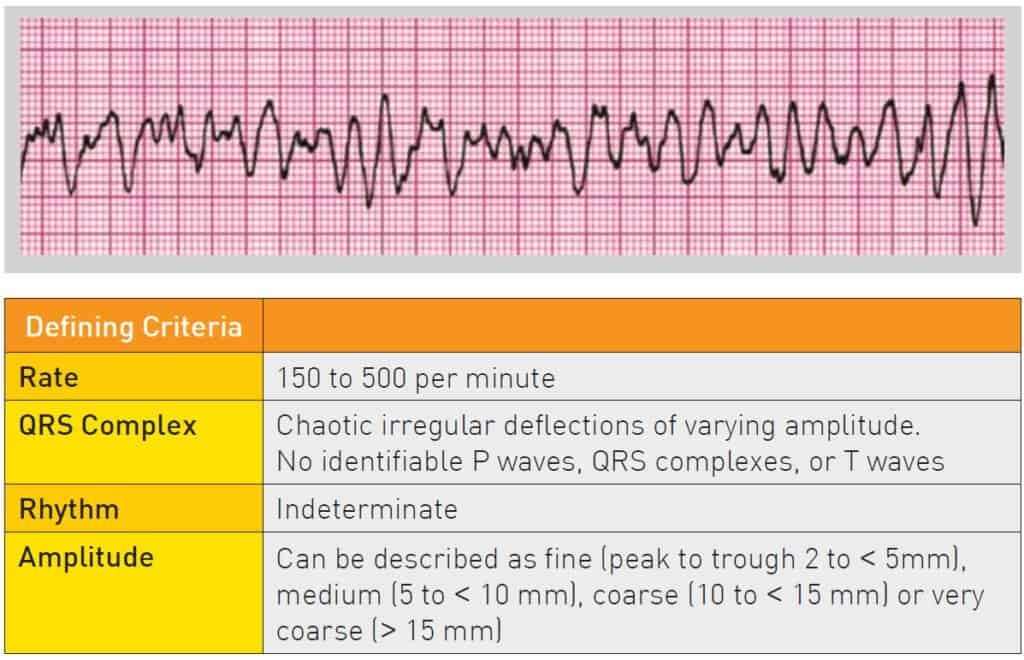

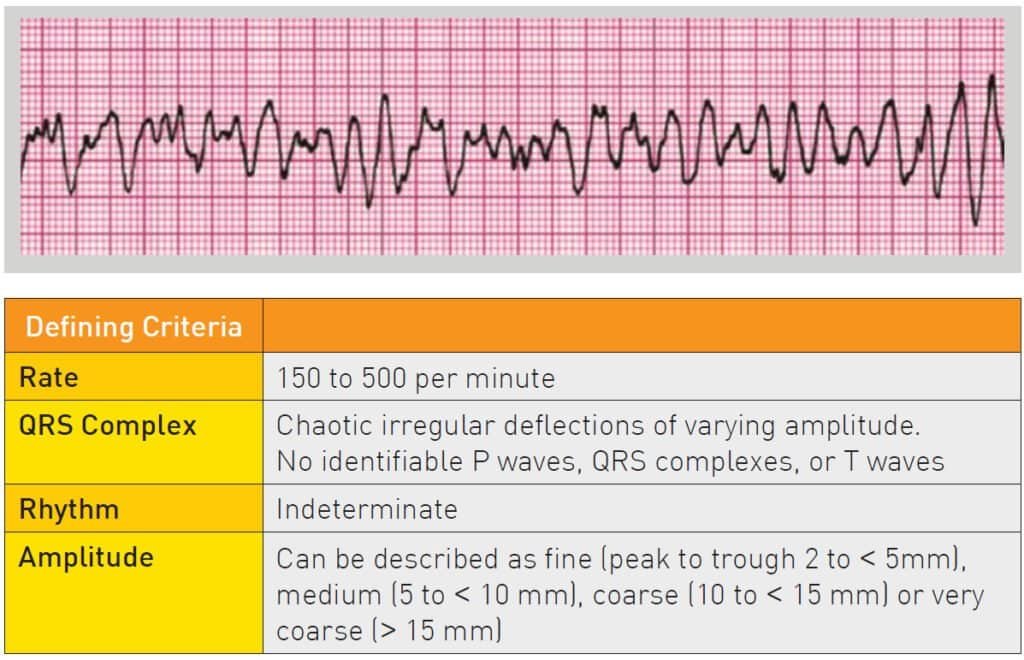

20. Ventricular Fibrillation

21. Asystole

Defibrillation and Electrical Therapy

What is Defibrillation?

• The passage of an electrical current across the myocardium to depolarise a critical mass of myocardium and enable restoration of coordinated electrical activity
• An electrophysiological event that occurs 30-50 ms after shock delivery – the heart is stunned and hopefully the Sino-Atrial (SA) node will take over
• Aims to restore sinus rhythm
• Indicated only for VF or pVT where a single shock is given followed immediately by chest compression without any pulse check or rhythm reanalysis after a shock
• Shock success typically defined as the termination of VF within 5 seconds after the shock. Shock success using this definition does not equal to resuscitation outcome

The Importance of Early Defibrillation

Early defibrillation is crucial to survival from sudden cardiac arrest (SCA) due to the following:

• Most frequent initial collapsed rhythm in out-of-hospital cardiac arrest (OHCA) is VF
• Defibrillation is the mainstay of therapy to terminate VF
• The probability of successful defibrillation diminishes rapidly over time
• VF tends to deteriorate to asystole over time

Defibrillation should be done without delay when a defibrillator machine is immediately available. Routine delivery of 2 minutes CPR before rhythm analysis and shock for an unwitnessed VF is not recommended.

Defibrillators

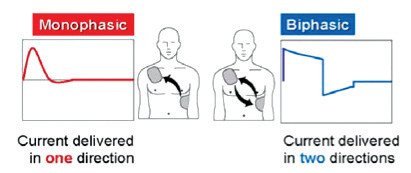

• Modern defibrillators are classified according to 2 types of waveforms: monophasic and biphasic
• Energy levels vary by type of device and manufacturer
• Biphasic defibrillators have greater efficacy in terminating atrial and ventricular tachyarrhythmias.
• Biphasic defibrillators are more commonly used nowadays

Defibrillation energy levels and number of shocks

There is absence of clear evidence regarding optimal initial and subsequent energy levels for shock. Any initial energy level ranging from 120 – 360 J is acceptable, followed by fixed or escalating energy up to the maximum output of the defibrillator.

There remains no evidence to support either a fixed or escalating energy protocol. Both strategies are acceptable; however, if the first shock is not successful and the defibrillator is capable of delivering shocks of higher energy, it is reasonable to increase the energy for subsequent shocks.

A single shock strategy is reasonable in preference to stacked shocks for defibrillation in the setting of unmonitored cardiac arrest. In the setting of monitored cardiac arrest with defibrillator available immediately (during cardiac catheterisation or high-dependency areas), use of up to three stacked
shocks may be considered.

Preparing the Patient

Electrode/Paddle Size

• A larger pad/paddle size (within the limits of 8 – 12 cm in diameter) lowers transthoracic impedance
• Defibrillators with self-adhesive pads have largely replaced defibrillation paddles in clinical practice

Electric/Paddle force

• 8kg force in adult

Transthoracic Impedance

• Use gel pads and electrode paddles or self-adhesive pads to reduce transthoracic impedance
• The average adult human impedance is 70 to 80 Ω. When transthoracic impedance is too high, a low-energy shock will not generate sufficient current to achieve defibrillation

Electrode/Paddle Placement

Anterolateral (sternal-apical) is the position of choice.
— The right (sternal) pad is placed to the right of the sternum, below the clavicle
— The apical pad is placed in the left mid-axillary line, approximately level with the V6 ECG electrode

• Also consider an alternate pad position when the patient is in the prone position (bi-axillary)
• Anterior-left infrascapular, and anterior-right infrascapular electrode placements are comparably effective
• Ensure that the paddle and gel or pads are in full contact with the skin

Special considerations

Breasts
— Place lateral pads/paddles under breast tissue
— Move pendulous breasts gently out of the way

Wet Chest
— Briskly wipe the chest dry before attaching electrode pads and attempting defibrillation

Hirsutism
— Shave hirsute males prior to application of pads
— Remove excess chest hair by briskly removing an electrode pad (which will remove some hair)
— or by rapidly shaving the chest in that area

Automated Implanted Cardioverter Defibrillator (ICD)
— Pad placement to avoid implantable medical devices
— Place the pad away from the device (at least 8 cm) or use an alternative pad position (anterior-lateral, anterior-posterior)

Safety Measures During Defibrillation

• Always announce that a shock is about to be delivered
• Perform a visual check making sure no one is in contact with the patient
• “Clear” the patient and rescuers before each shock
• Remove the oxygen delivery device if in use
• When pressing the shock button, the defibrillator operator should face the patient, not the machine
• A clear and firm warning should be given before delivering a shock (e.g., “Clear shocking”)
• Everyone must stand clear of patient
• The entire sequence should take less than 5 seconds

• Pre shock pause should be no more than 5 seconds. Even a 5 – 10 second delay will reduce the chance of survival. Use of adhesive pad is encouraged to reduce delay

• Continue giving high quality chest compression for 2 minutes after delivery of shock to improve coronary perfusion pressure and cerebral perfusion. Check the pulse and rhythm only after completing 2 minutes of CPR

Synchronized Cardioversion

A shock delivery that is timed to occur with the R wave of the electrocardiogram rather than with the T wave

Avoids shock delivery during the relative refractory portion of the cardiac cycle when a shock could produce VF

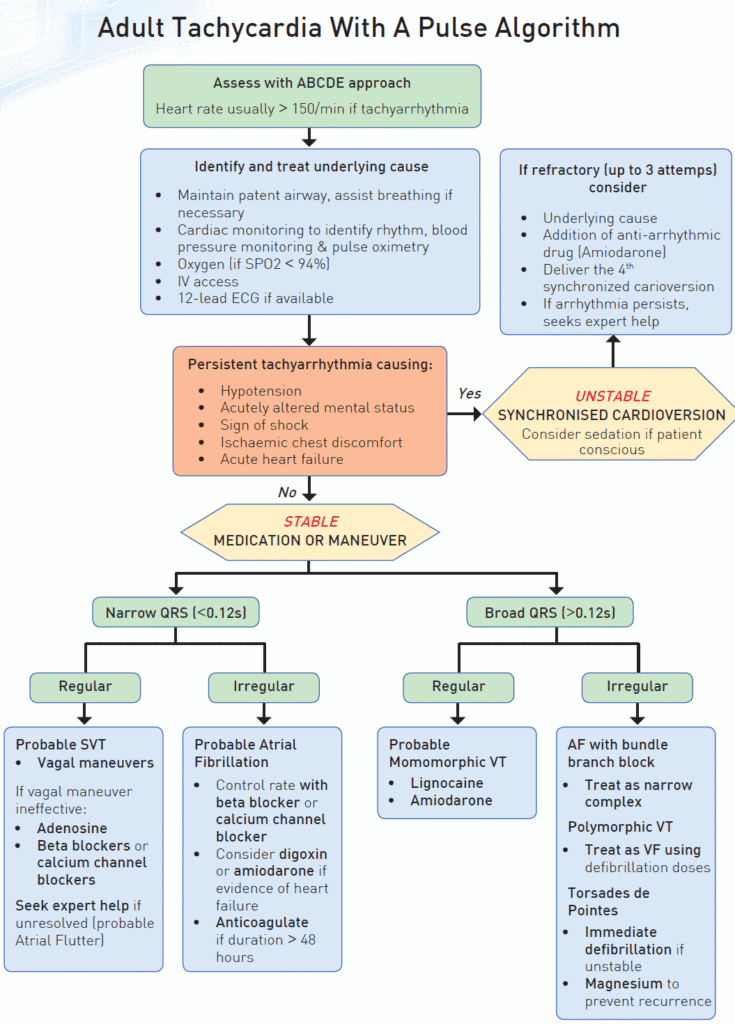

Use of Synchronized Cardioversion

• Indicated in a hemodynamically unstable patient (low blood pressure) with a perfusing rhythm (pulse present)
• Recommended in Supraventricular Tachycardia due to re-entry, Atrial Fibrillation, Atrial Flutter and Atrial Tachycardia and Monomorphic VT with pulse
• Conscious patients require anaesthesia or sedation, before attempting synchronised cardioversion

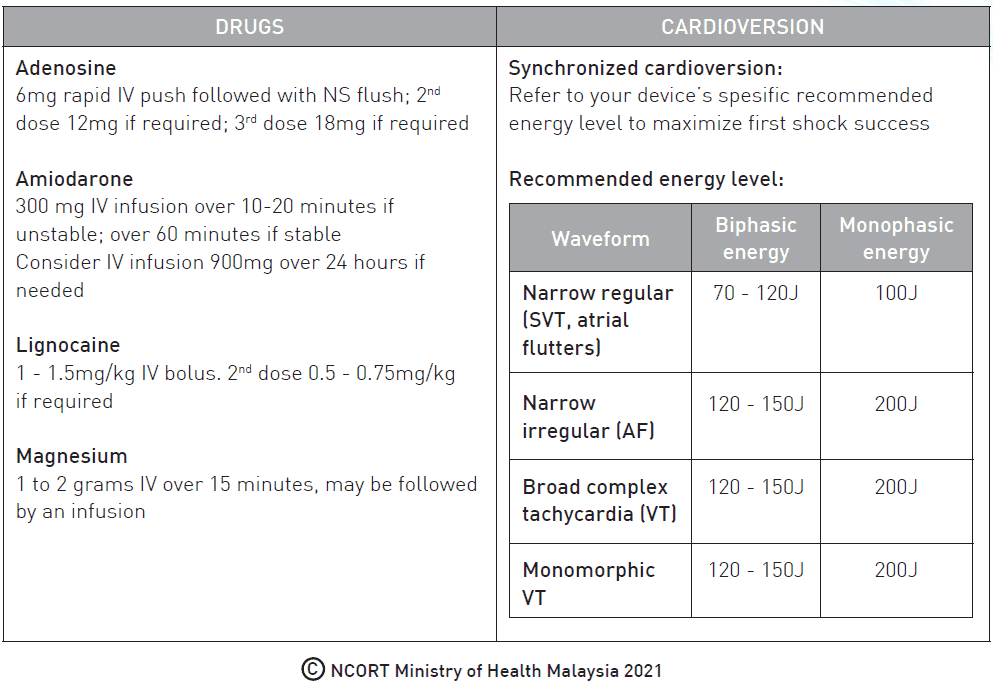

Atrial Fibrillation

• An initial synchronised shock at maximum defibrillator output rather than an escalating approach is a reasonable strategy based on current data

Atrial Flutter and Paroxysmal Supraventricular Tachycardia

• Give an initial shock of 70 -120 J
• Give subsequent shocks using stepwise increase in energy

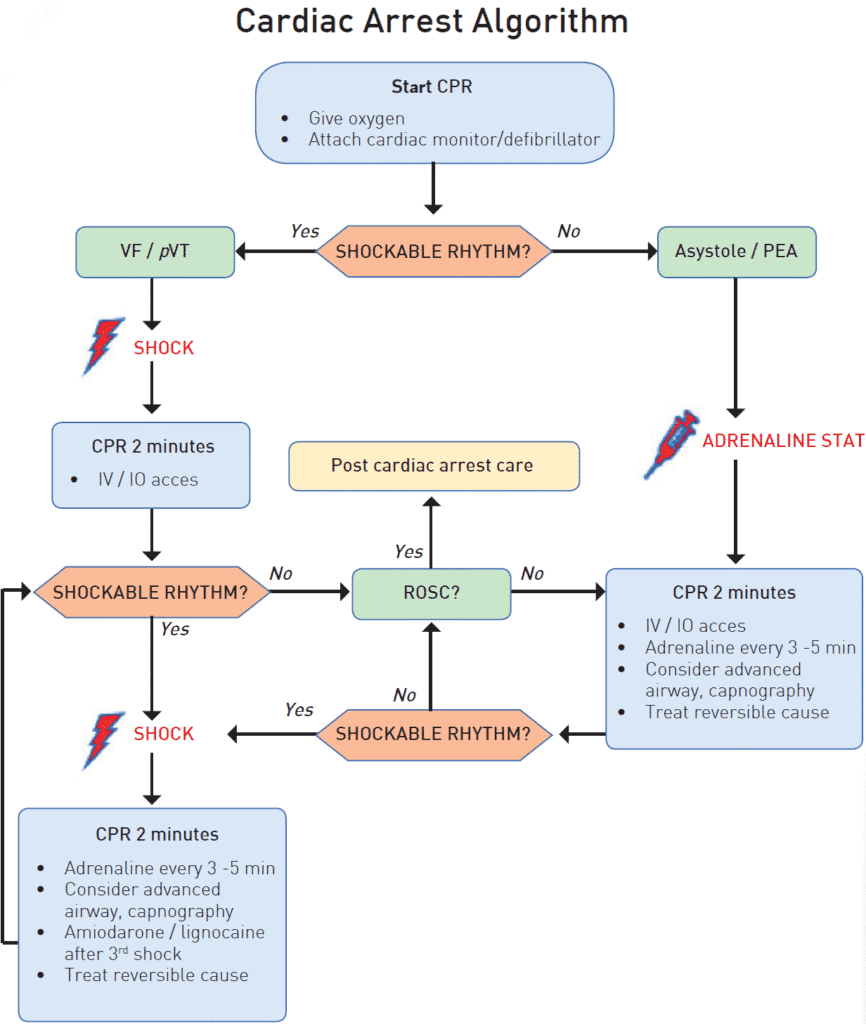

Ventricular Fibrillation (VF)

• CPR and defibrillation are the mainstay treatment for VF
• Defibrillation as soon as the defibrillator machine is available
• Use of adrenaline after the 2nd shock
• Use of antiarrhythmic after the 3rd shock
• For further details refer to the VF algorithm

Recurrent ventricular fibrillation (refibrillation)

• Recurrence of fibrillation is usually defined as ‘recurrence of VF during a documented cardiac arrest episode, occurring after initial termination of VF while the patient remains under the care of the same providers
• Consider escalating the shock energy after a failed shock

Refractory ventricular fibrillation

• Refractory VF is defined as fibrillation that persists after three or more shocks and occurs in approximately 20% of patients who present in VF
• Consider escalating the shock energy or using an alternative defibrillation pad position (e.g., anterior-posterior)

Patient with witnessed and monitored VF

• In areas where the self-adhesive pads are already attached to the patient e.g., invasive catheterization laboratory, coronary care unit, critical care unit
• 3 quick and successive (stacked) shocks are recommended
• Chest compression is unlikely to improve the already very high chance of ROSC when defibrillation occurs early in the electrical phase, immediately after onset of VF

Ventricular Tachycardia (VT)

If pulseless VT (pVT)

• Treat as VF

Unstable Polymorphic (Irregular) VT

• Treat as VF using defibrillation doses
• Polymorphic VT that occurs in the setting of QT prolongation in sinus rhythm is considered as Torsades de Pointes
  • Prompt defibrillation is indicated in patients with hemodynamically unstable Torsades de Pointes
  • In the conscious patient with recurrent episodes of Torsades de Pointes, IV magnesium sulfate (initial dose of 1 to 2 grams IV over 15 minutes, may be followed by an infusion) is first-line therapy

Unstable Monomorphic (Regular) VT with a Pulse

• Treat with biphasic waveform cardioversion (synchronized) at 120 J – 150J or monophasic waveform cardioversion at 200 J
• If the initial shock fails, increase the dose in a stepwise fashion

Pacing

• Not recommended for patients in asystolic cardiac arrest as it is not effective and may delay or interrupt the delivery of chest compressions
• It is reasonable for healthcare providers to be prepared to initiate pacing in patients who do not respond to atropine (or second-line drugs if these do not delay definitive management).
• Immediate pacing might be considered if the patient is severely symptomatic
• If the patient does not respond to drugs or transcutaneous pacing, transvenous pacing is probably indicated
